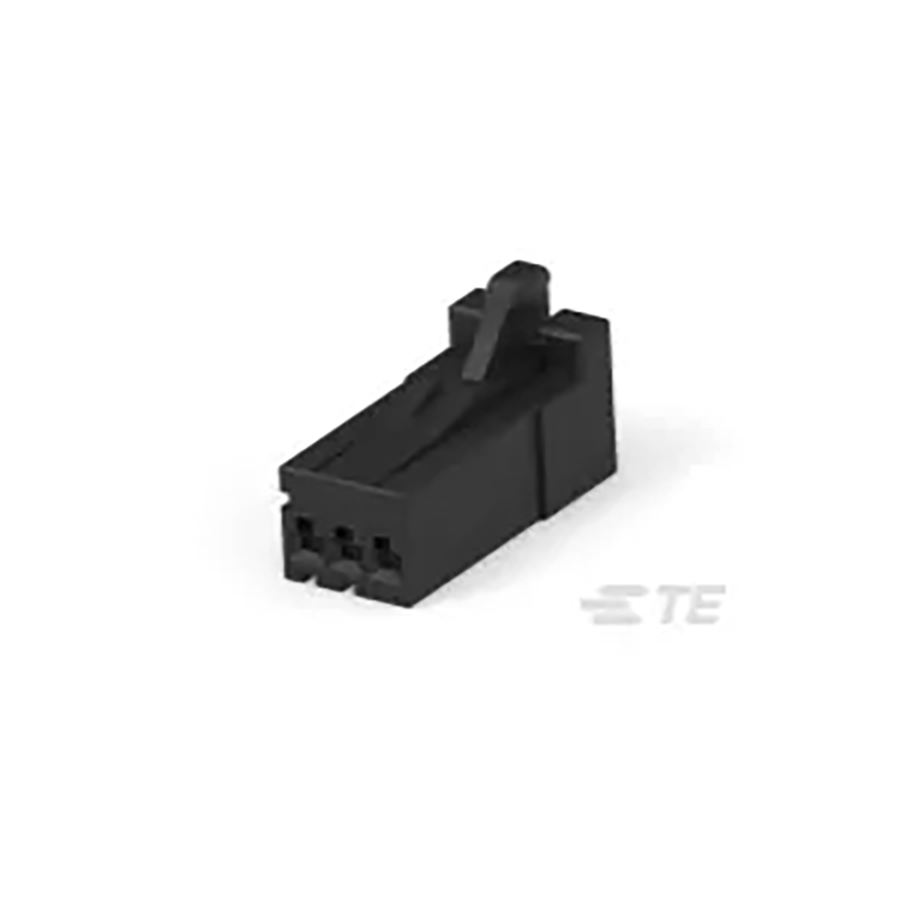

1-1318120-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1318120-3
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:3 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 8.89 mm |
| Width | 12.0142 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 19.9898 mm |
| Packaging | Bulk |
| Depth | 20 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 2.5 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 3 |
| ELV | Compliant |
| Body Material | Glass, Polyester |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 18 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 1582
Distributors
pcbx
pcbxUnit Price$0.26726
Ext.Price$0.26726
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26726 | $0.26726 |
| 10 | $0.23775 | $2.37750 |
| 50 | $0.21149 | $10.57450 |
| 100 | $0.18365 | $18.36500 |
| 500 | $0.15947 | $79.73500 |
| 1000 | $0.15250 | $152.50000 |
| 3000 | $0.14583 | $437.49000 |
| 5000 | $0.13945 | $697.25000 |
